Multiple Instances (Scaling)

Get the latest docs
You are looking at documentation for an older release. Not what you want? Go to the current release documentation.

This page describes different concepts involved in scaling components of your application blueprint.

Overview

When we refer to multiple instances and scaling, we are actually referring to the number of node instances each node template will have on deployment, and changes made to that number during runtime after the deployment is created, using the scale workflow.

There are two ways of specifying this configuration in the application blueprint. The first is aimed at configuring this number on a per node template basis, using the scalable capability configuration. The second method is mostly aimed at configuring the number of instances on a group basis where the group contains several node templates. We will show both and what will follow is an explanation of the difference between these two methods, after which we will show how the number of instances for different nodes may be changed during runtime.

Node Templates `scalable` Configuration

To specify the initial number of instances a node template will have, the node template capabilities.scalable properties should be configured.

For example, to configure some vm node template so that it will be deployed with 5 initial instances, the following configuration may be used:


node_templates:
  example_vm:
    type: cloudify.nodes.Compute
    capabilities:
      scalable:
        properties:
          default_instances: 5

See Node Templates for more details.

Scaling Policy and Scaling Groups Configuration

To specify the initial number of instances a group of node templates will have as a single unit, use scaling policies and groups.

For example, to configure a scaling group for a vm and an ip, the following configuration may be used:


node_templates:
  vm:
    type: cloudify.nodes.Compute
  ip:
    type: cloudify.nodes.VirtualIP

groups:
  vm_and_ip:
    members: [vm, ip]

policies:
  scale_policy1:
    type: cloudify.policies.scaling
    properties:
      default_instances: 5
    targets: [vm_and_ip]

When deployed, 5 vm node instances and 5 ip node instances will be created.

See Policies for more details.

Combining Node Template `scalable` With Scaling Groups

A node template may have have its scalable capability configured and in addition, may also be included in some scaling group. Consider the following example:


node_templates:
  vm:
    type: cloudify.nodes.Compute
    capabilities:
      scalable:
        properties:
          default_instances: 3

groups:
  vm_group:
    members: [vm]

policies:
  scale_policy1:
    type: cloudify.policies.scaling
    properties:
      default_instances: 5
    targets: [vm_group]

When deployed, 15 (3 * 5) vm node instances will be created.

Note

Scaling groups may be nested. (i.e. a scaling group may have a different scaling group as one if its members).

Note

Using the get_attribute intrinsic function in the blueprint with explicit reference to a node by its name (i.e. not SELF, SOURCE or TARGET) between members of the same scaling group may be used in places where otherwise, an ambiguity would arise. See get_attribute intrinsic function for more details.

`connected_to/depends_on` Relationship Semantics

A previous example showed how to use scaling groups in order to scale a group of node templates together.

In this section, we will discuss how connected_to/depends_on relationships behave between node instances that belong to the same scaling group instance.

Generally, when two node templates are related via a connected_to/depends_on relationship, relationship instances will exist between all node instances of the source node to all node instances of the target node. This is further elaborted here under the all_to_all example.

Similar logic applies between node templates that belong to the same scaling group. The exception here, is that the relationship instances between the node instances will not “escape” scaling group boundaries. This is best explained with an example.

Consider the following:


node_templates:
  application:
    type: web_app
    capabilities:
      scalable:
        properties:
          default_instances: 2
    relationships:
      - type: cloudify.relationships.connected_to
        target: database
  database:
    type: database
    capabilities:
      scalable:
        properties:
          default_instances: 2

groups:
  application_and_database:
    members: [application, database]

policies:
  scale_policy2:
    type: cloudify.policies.scaling
    properties:
      default_instances: 2
    targets: [application_and_database]

The previous blueprint snippet, when deployed, will have 2 instances of the application_and_database scaling group. Each scaling group will contain 2 node instances of the application node and 2 node instances of the database node.

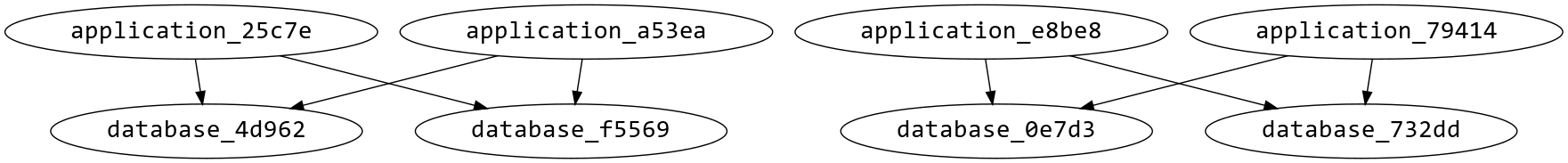

The following diagram aims to explain how will the different node instances be connected. Specifically, it aims to show how connected_to relationships don’t “escape” scaling group boundaries:

scaling_groups_diagram

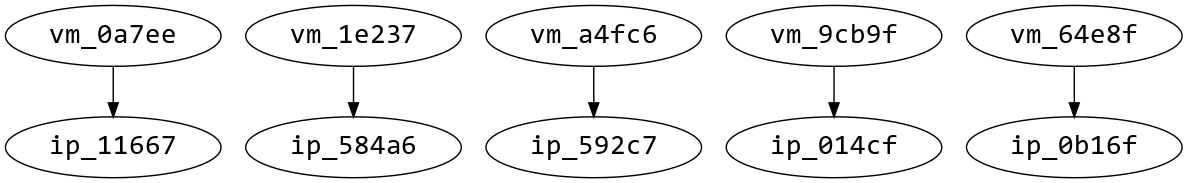

The next diagram builds upon the blueprint shown previously in this page where we had 5 vm_and_ip scaling group instances with a vm and ip node instances in each scaling group instance. If the vm node were to have a connected_to relationship to the ip node, this is how the relationships would behave:

scaling_groups_diagram2

`contained_in` Relationship Semantics

Implicit Scaling Group Membership

If node A is contained_in node B and node B is part of some scaling group S, then node A is also implicitly included in S.

For example, in the following example where a db node template is contained_in a vm node template, both group definitions are equivalent:


node_templates:
  vm:
    type: cloudify.nodes.Compute
  db:
    type: cloudify.nodes.DBMS
    relationships:
      - target: vm
        type: cloudify.relationships.contained_in

groups:
  vm_group:
    members: [vm, db]

  # is equivalent to
  vm_group:
    members: [vm]

policies:
  scale_policy1:
    type: cloudify.policies.scaling
    targets: [vm_grop]

Scaling groups and `contained_in` Semantics.

The semantics for contained_in relationships are described in detail here.

Building upon the semantics described in the previous link, we now describe how scaling group fit in.

Consider the following:


node_templates:
  vm:
    type: cloudify.nodes.Compute
    capabilities:
      scalable:
        properties:
          default_instances: 2
  app:
    type: web_app
    relationships:
      - type: cloudify.relationships.contained_in
        target: vm
  db:
    type: database
    relationships:
      - type: cloudify.relationships.contained_in
        target: vm

groups:
  app_and_db:
    members: [app, db]

policies:
  scale_policy2:
    type: cloudify.policies.scaling
    properties:
      default_instances: 2
    targets: [app_and_db]

Deploying the previous blueprint produces this topology:

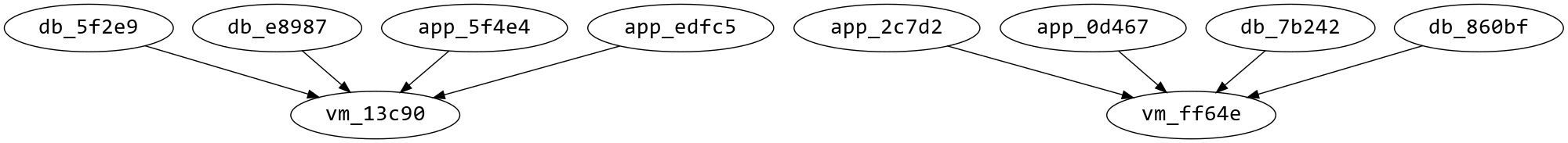

scaling_groups_diagram3

It can be seen from the diagram that two vm node instances were deployed, as expected from the blueprint definition. Each vm node instance has two db and two app node instances contained in it. Or, put differently, each vm node instance “contains” 2 instances of the app_and_db scaling group as defined in the blueprint.

This shows that scaling groups can be “contained in” node templates when their members are contained_in some other node templates.

Scale Workflow

To change the number of node instances during runtime (i.e. after the deployment is installed), use the scale workflow.

See Scale Workflow for more details.
