LDAP Plugin

---

Overview

LDAP is a protocol used over an IP network to access and manage the distributed directory information service. The directory service provides a systematic set of records, usually organized in a hierarchical structure and is often used by organizations as a central repository to hold user information as well as provide a way of authentication accordingly. The directory service also makes it possible to define user groups and user roles that can later be used for authorization purposes.

This guide will focus on using the Cloudify LDAP security plugin to authenticate users against an LDAP/Active Directory service endpoint using the simple, bind based authentication method.

LDAP server authentication may be configured in a variety of ways, and so the cloudify-ldap-plugin is designed to support multiple configurations, all of which are configurable under the manager-types.yaml file’s security settings and will be demonstrated here. Users reading this guide must first be familiarized with LDAP and with the Cloudify manager security concepts, with regards to authentication providers. For any further customization of this plugin, it is recommended that developers be familiar with the python-ldap client API.

Installation

In order to install the cloudify-ldap-plugin it must first be defined as a custom rest plugin in the manager-blueprint, prior to bootstrap.

REST plugin configuration

Defining the cloudify-ldap-plugin in the manager blueprint as a rest plugin:

node_types:
  .....
  manager.nodes.RestService:
    .....
    properties:
      .....
      plugins:
        ldap_authentication_plugin:
          source: 'http://gigaspaces-repository-eu.s3.amazonaws.com/org/cloudify3/3.3.1/sp-RELEASE/cloudify_ldap_plugin-1.0-py27-none-linux_x86_64-centos-Core.wgn'
          install_args: 'cloudify-ldap-plugin --use-wheel --no-index --find-links=wheels/ --pre'

This example demonstrates using a Wagon package to install the cloudify-ldap-plugin. Using a Wagon package in this case, eliminates the need for some system-level dependencies to be installed on the manager host, as explained in the following paragraph.

System-level requirements

The LDAP python dependency python-ldap, included in the cloudify-ldap-plugin package, requires system level dependencies i.e openldap-devel, python-devel, and gcc in order to install. These system level dependencies should be installed using a userdata script as follows:

• No Wagon package - Userdata script should include sudo yum install python-devel openldap-devel gcc -y
• Using Wagon package - Userdata script should only include sudo yum openldap-devel -y

Configuring the authentication provider

Configuring the LDAP authentication provider should be done within the constraints of authenticating against the organization’s directory. Setting the LDAP plugin configuration is done prior to bootstrap and will determine the way users authenticate against the Cloudify manager throughout its lifecycle.

Authentication process

Once the user request has been made to the Cloudify REST endpoint, the bind authentication process can take place according to one of the following options:

Direct bind

Authenticate the entity by attempting to bind using the user id and password supplied by the user, where user id is the fully qualified DN, e.g. “cn=steve miller,ou=Users,dc=welcome,dc=com”.

Search based bind

Authenticate the entity by performing a user search under a base DN according to the user id and a pre-defined inetOrgPerson attribute.
The pre-defined attribute and the base DN are configurable prior to bootstrap, as will be described later on.

To understand the search process, we’ll define a sample LDAP user named ‘steve’:

cn="steve miller"
uid="smiller"
dn="cn=steve miller,ou=Users,dc=welcome,dc=com"

and sample base DN:

base_dn="ou=Users,dc=welcome,dc=com"

The search based flow for ‘steve’ can be described as follows:

• User makes a request to the Cloudify REST using his uid (“smiller”) as user id rather then passing the fully qualified DN.
  For this example we use uid since it’s the default attribute for search based bind.
• An LDAP search is performed for the user starting at the pre-defined base DN (“ou=Users,dc=welcome,dc=com”).
• If a user with uid “smiller” has been found under the base DN, his fully qualified DN (“cn=steve miller,ou=Users,dc=welcome,dc=com”) will be used to bind with the supplied password.

Initialization properties

Search properties

Using the search option would require setting these properties under the search_properties schema:

Configuration options

This section covers some possible configuration variations that can be defined in the manager-types.yaml file, under authentication_providers.

Using direct bind

• To enable authentication using the user id and password provided in the user’s request, the configuration to be used would look like so:

authentication_providers:
    ......
    - name: 'ldap_authentication_provider'
      implementation: 'authentication.ldap_authentication_provider:LDAPAuthenticationProvider'
      properties:
        ldap_url: 'ldap://xxx.xxx.xxx.xxx:389'
    ......

• Active Directory : The “ActiveDirectoryAuthenticationProvider” also supports passing the domain_name property to the provider configuration. This enables Active Directory users to authenticate according to their sAMAccountName not having to pass their entire userPrincipalName. The configuration for such implementation would be:

authentication_providers:
    ......
    - name: 'ad_authentication_provider'
      implementation: 'authentication.active_directory_authentication_provider:ActiveDirectoryAuthenticationProvider'
      properties:
        ldap_url: 'ldap://xxx.xxx.xxx.xxx:389'
        domain_name: 'welcome.com'
    ......

Using search based bind

• Using the search properties as part of the configuration. This example uses the cn attribute as the ‘user_id_attribute’ and would only allow user authentication according to the CN (“common name”). The ‘user_id_attribute’ can be set to any attribute defined in inetOrgPerson, as long as that attribute is set to be unique in the directory-service configuration.

authentication_providers:
    ......
    - name: 'ldap_authentication_provider'
      implementation: 'authentication.ldap_authentication_provider:LDAPAuthenticationProvider'
      properties:
        ldap_url: 'ldap://xxx.xxx.xxx.xxx:389'
        search_properties:
        	base_dn: 'ou=Users,dc=welcome,dc=com'
        	admin_user_id: 'cn=admin,ou=Users,dc=welcome,dc=welcome'
        	admin_password: 'XXXXXX'
        	user_id_attribute: 'cn'
    ......

Client authentication

Client authentication against the Cloudify manager is done via HTTP basic authentication. Cloudify clients can be configured to pass the “authorization” header containing the user id and password encoded with Base64. These credentials can be passed to clients as follows:

CLI

When using the CLI to perform secure requests, credentials should be set as environment variables:

export CLOUDIFY_USERNAME=user_id
export CLOUDIFY_PASSWORD=password
# make a secured request
cfy status

REST client

When using the REST client to perform secure requests, authentication header must be set on instantiation:

headers = {'Authorization': 'Basic ' + base64_encode('USERNAME:PASSWORD')}
rest_client = CloudifyClient(host='143.3.12.x', headers=headers)
# make a secured request
rest_client.manager.get_status()

Cloudify web UI

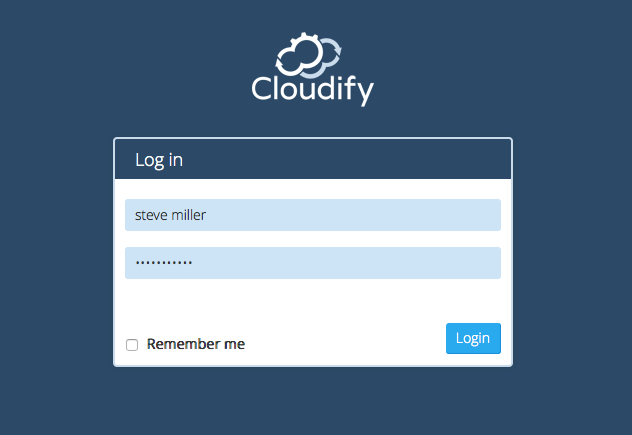

When using the web UI, credentials should be passed via the login window:
